Any Gauge Inset Track Parts

Inset track rail bases parts for various types of rail, code 75, code 100 and code 200. Lower cost option, and different gauges can e built up.



Link to :

    Track Menu page





click on images to link to items Description

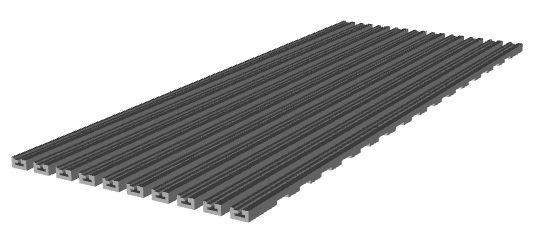

Pack of bases for inset rail, code 75. A lower cost version of my inset track panels. Printed as straight , but when rail is inserted it can be bent to virtually any curve.
Suggested method of construction, is to insert rail, bend and then superglue base to cardboard base with curve drawn on it. Remove rail then fit card to layout. Don't get superglue on rail , otherwise it won't be possible to remove rail.
Can also be cut up to create inset pointwork etc.

For 16.5mm gauge gap between base sections is 12.697mm (code 75)

Other gauges based on these(3.8mm less than gauge required), so 9mm gauge needs a 5.2mm gap, 6.5mm gauge requires 2.7mm gap.

Pack of bases for inset rail, code 100. A lower cost version of my inset track panels. Printed as straight , but when rail is inserted it can be bent to virtually any curve.
Suggested method of construction, is to insert rail, bend and then superglue base to cardboard base with curve drawn on it. Remove rail then fit card to layout. Don't get superglue on rail , otherwise it won't be possible to remove rail.
Can also be cut up to create inset pointwork etc.


For 16.5mm gauge gap between base sections is 10.7mm (code 100)


Other gauges based on these(5.8mm less than gauge required).

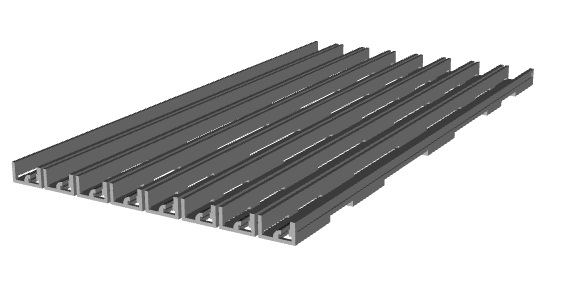

Pack of bases for inset rail, code 200. A lower cost version of my inset track panels. Printed as straight , but when rail is inserted it can be bent to a gentle  curve.
